How to Choose the Right AOD Pump for Your Application?

Choosing the right aod pump begins with understanding the process, not simply comparing catalog prices. An air-operated double-diaphragm pump may handle viscous fluids, suspended solids, and changing flow demands. Yet the wrong material choice can cause swelling, cracking, or early diaphragm failure. A small mismatch becomes expensive when the pump runs beside a mixing tank every day.

Jim Wilden, founder of Wilden and a recognized AODD pump pioneer, expressed a useful principle: “The pump must fit the process, not force the process to fit the pump.” That idea remains practical. Fluid viscosity, temperature, specific gravity, particle size, suction lift, discharge pressure, and chemical compatibility all deserve careful review. So does the available air supply. A pump rated for high flow cannot perform well with unstable or insufficient air pressure.

Site experience also matters. A pump may look suitable on paper, but long suction lines, sharp pipe bends, or frequent dry running can change the result. I have seen specifications focus heavily on maximum flow while overlooking pulsation, noise, and maintenance access. That is an easy mistake.

A reliable selection process should compare diaphragm materials, valve design, port size, wetted components, and expected duty cycle. Operators should also examine air consumption and spare-parts availability. The cheapest option is not always economical.

There is no universal best aod pump. The right choice balances performance, safety, service life, and real operating conditions. Better questions usually produce better pumps.

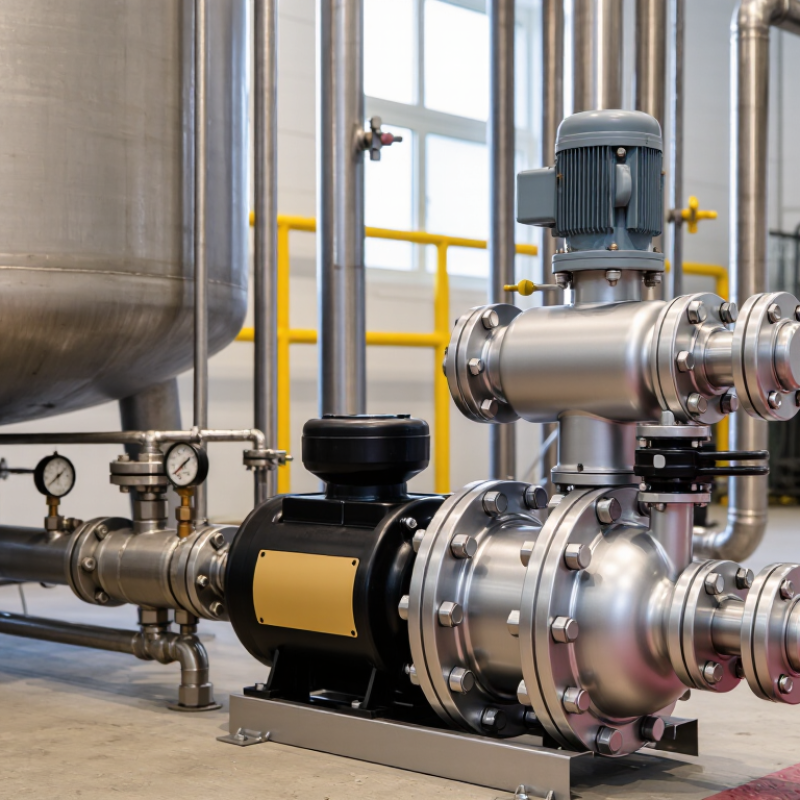

How to Choose the Right AOD Pump for Your Application?
Table of Contents [Hide]
1 Define Your Application Requirements and Pumping Conditions
2 Compare AOD Pump Materials and Chemical Compatibility
3 Select the Appropriate Flow Rate and Pressure Range
4 Evaluate Air Consumption, Efficiency, and Operating Costs
5 Verify Installation, Maintenance, and Safety Requirements

Define Your Application Requirements and Pumping Conditions

Begin with the liquid, not the pump catalog. Record viscosity, specific gravity, solids size, temperature, pH, required flow, and discharge pressure. Then define suction lift, pipe length, elevation, and duty cycle. These conditions determine diaphragm material, body construction, port size, and air-valve configuration. A cold, viscous liquid may need larger passages and slower cycling. An abrasive slurry needs tougher wetted materials and easier inspection access. Do not estimate from water performance. Water curves can mislead.

The U.S. Department of Energy reports that compressed air commonly uses about 10% of industrial electricity. Its Improving Compressed Air System Performance sourcebook also identifies leakage losses of 20–30% in poorly maintained systems. That makes air consumption a process requirement, not a minor specification. Measure pressure at the pump inlet, not only at the compressor. Check pipe restrictions, filter condition, and pressure fluctuations during operation. Compressed Air Challenge guidance also emphasizes leak control and stable system pressure. Field commissioning often exposes the overlooked problem: an apparently correct pump may stall when a filter loads or a hose collapses. It is tempting to choose a larger pump for comfort. That choice can increase air use and cycling. A better approach is to test the actual fluid, record real operating conditions, and challenge every assumption. Some uncertainty remains, especially with changing viscosity. That uncertainty deserves monitoring, not blind oversizing.

How to Choose the Right AOD Pump for Your Application? - Define Your Application Requirements and Pumping Conditions

Use the following application and operating criteria to narrow down the appropriate air-operated double-diaphragm (AOD) pump configuration.

Selection Dimension Typical Requirement or Condition Recommended Pump Consideration Practical Selection Guidance
Required Flow Rate Low: 1–20 L/min
Medium: 20–150 L/min
High: 150–600 L/min		 Select the pump size and air distribution system according to the required operating flow, not only the maximum published flow. Choose a pump with a rated capacity approximately 20–30% above the normal process demand to accommodate pressure losses, viscosity changes, and future operating variation.
Discharge Pressure Common operating range: 2–6 bar
Maximum pressure depends on the pump design and air supply.		 Verify that the pump can overcome static head, pipe friction, filters, valves, and downstream equipment resistance. For stable operation, the required discharge pressure should remain below the pump’s maximum pressure rating with a reasonable safety margin.
Liquid Type Water-like liquids, solvents, oils, slurries, corrosive chemicals, or shear-sensitive fluids. Select wetted materials, diaphragms, balls, and seats for chemical compatibility and process temperature. Check compatibility against the actual fluid concentration, temperature, cleaning chemicals, and exposure time rather than relying only on the fluid name.
Viscosity Low viscosity: below 100 cP
Medium viscosity: 100–1,000 cP
High viscosity: above 1,000 cP		 Higher viscosity reduces flow and increases air consumption and pressure demand. For viscous fluids, use larger fluid passages, reduce piping restrictions, and select a larger pump than would be required for water at the same nominal flow.
Solid Content Clear liquid, suspended particles, abrasive solids, or irregular soft particles. Consider diaphragm geometry, ball and seat design, internal passage size, and abrasion-resistant wetted materials. For solids, select a pump with passageways large enough to reduce clogging. Confirm the allowable particle size and whether the solids are abrasive.
Particle Size Fine particles below 1 mm, coarse particles from 1–6 mm, or larger soft solids. The pump should have a suitable maximum solids-handling capability and a non-clogging valve arrangement. Avoid selecting solely by pipe diameter; the effective internal passage and check-valve opening determine actual solids-handling performance.
Fluid Temperature Ambient service, heated process fluid, or low-temperature liquid. Confirm the temperature limits of diaphragms, elastomers, body materials, and air-side components. Consider the highest continuous temperature, short-term peaks, start-up conditions, and cleaning or sterilization temperatures.
Chemical Compatibility Neutral, acidic, alkaline, solvent-based, oxidizing, or chemically aggressive media. Choose suitable body and wetted-part materials such as engineered plastics, stainless steel, or other chemically resistant options. Review compatibility for every wetted component, including diaphragms, O-rings, balls, seats, fasteners, and connection gaskets.
Air Supply Typical compressed-air pressure: 2–7 bar
Required air quality varies by application.		 Verify available air pressure, compressor capacity, air-line size, filtration, regulation, and moisture control. Insufficient air volume can cause low flow, pulsing, or unstable cycling even when the air pressure appears adequate.
Air Consumption Depends on pump size, flow, discharge pressure, liquid viscosity, and operating efficiency. Compare estimated air consumption with the compressor’s usable capacity at the required pressure. Use a regulator and pressure gauge, and consider a pulsation dampener or air-saving control when energy consumption is important.
Suction Lift Flooded suction, shallow lift below 3 m, or deeper lift conditions. Check dry and wet suction-lift capability, liquid vapor pressure, hose flexibility, and inlet losses. Keep the suction line short and adequately sized. High viscosity, long hoses, and restrictive strainers can substantially reduce actual suction performance.
Self-Priming Requirement Required when the pump starts with an empty suction line or intermittent liquid supply. AOD pumps are generally suitable for self-priming applications, but performance depends on air pressure, fluid properties, and installation layout. Confirm the expected priming time and install the pump as close to the liquid source as practical to reduce suction losses.
Flow Pulsation Acceptable for transfer or mixing, or restricted for filling, metering, spraying, and filtration. Consider a pulsation dampener, flexible hose, accumulator, or flow-control arrangement. Use a dampener when consistent downstream flow, accurate filling, reduced vibration, or protection of sensitive equipment is required.
Materials of Construction Plastic, aluminum, stainless steel, or other specialized material requirements. Match the pump body and wetted parts to chemical resistance, temperature, abrasion, hygiene, and grounding requirements. For flammable solvents, verify electrical grounding and static-control measures. For hygienic service, check cleanability and surface-finish requirements.
Connection Size Common process connections range from approximately 13 mm to 100 mm, depending on pump size and duty. Choose connections that support the required flow without creating excessive velocity or pressure loss. Use correctly sized suction and discharge hoses. Undersized flexible hose can restrict flow and increase pump cycling frequency.
Installation Environment Indoor, outdoor, dusty, wet, corrosive, hazardous, or washdown areas. Confirm enclosure, grounding, corrosion resistance, drainage, ventilation, and applicable site safety requirements. Provide adequate access for diaphragm and valve maintenance, and install isolation valves where routine servicing is expected.
Duty Cycle Occasional transfer, intermittent production, or continuous operation. Evaluate diaphragm life, cycle rate, air consumption, cooling conditions, and maintenance intervals. For continuous duty, avoid operating continuously at the pump’s maximum flow or pressure. Select a size that meets the process demand without excessive cycling.
Hygiene and Cleanability General industrial service, food processing, pharmaceutical, or sanitary applications. Use suitable sanitary materials, smooth internal surfaces, drainable construction, and compatible cleaning procedures. Confirm requirements for clean-in-place, sterilization, dead-leg minimization, gasket materials, and regulatory documentation.
Maintenance Preference Basic field service, minimal downtime, or rapid component replacement. Consider accessible air valves, replaceable diaphragms and check-valve parts, standard connection hardware, and available service kits. Keep recommended spare diaphragms, balls, seats, gaskets, and air-line filters available for critical applications.
Final Selection Check Flow, pressure, temperature, viscosity, solids, air supply, materials, and installation conditions are defined. Validate the complete operating point using a pump performance curve and application-specific compatibility data. Request a performance review when the application combines high viscosity, abrasive solids, deep suction lift, elevated temperature, or aggressive chemicals.
Note: Actual performance varies with pump size, air pressure, liquid viscosity, temperature, piping layout, suction conditions, and wetted-part materials. Always verify the selected operating point against the applicable pump performance curve and chemical-compatibility data.

Compare AOD Pump Materials and Chemical Compatibility

How to Choose the Right AOD Pump for Your Application?

Material selection often determines whether an AOD pump performs reliably or fails early. The fluid touches the diaphragm, balls, seats, and manifold. These wetted parts need chemical compatibility. Polypropylene suits many acids, alkalis, and water-based chemicals. PVDF offers stronger resistance in demanding chemical service. PTFE is widely selected for aggressive fluids and higher temperature exposure. However, no material works for every process.

Do not rely on fluid names alone. Concentration, temperature, pressure, and exposure time can change compatibility. A diluted acid may behave differently at elevated temperatures. Abrasive solids can also wear soft plastic components quickly. Elastomers deserve equal attention. EPDM, FKM, and PTFE may react differently to the same fluid. Check the chemical concentration and operating temperature together.

A compatibility chart is only a starting point. During field inspections, swelling, cracking, discoloration, and slow leakage often reveal poor material choices. Test a small sample when the fluid is unfamiliar. Check the pump after real operating cycles, not only after a short trial. I would also review cleaning chemicals, because they are sometimes more aggressive than the process fluid. This step takes time. It can prevent an expensive replacement.

Reliable selection combines supplier data, safety documentation, and actual process conditions. Record the fluid composition carefully. If the composition changes, reassess the pump materials. A technically suitable diaphragm can still fail when the seat or ball is overlooked.

Select the Appropriate Flow Rate and Pressure Range

How to Choose the Right AOD Pump for Your Application?

Select the Appropriate Flow Rate and Pressure Range

Choosing an air-operated double-diaphragm pump begins with two numbers: required flow rate and discharge pressure. Do not size the pump from the pipe diameter alone. Estimate the normal flow, peak demand, fluid viscosity, suction lift, and total system resistance. A pump rated for 100 liters per minute may deliver much less through a long hose, narrow fittings, or a restrictive filter.

Allow practical margin, but avoid excessive oversizing. A large pump running slowly can waste compressed air and create unnecessary pulsation. In field installations, I have seen flow estimates based on ideal conditions. The actual output fell sharply when the liquid became colder and thicker. That mistake was preventable.

Check the pressure range against the complete system, not only the tank outlet. Include elevation changes, valves, hose friction, and the pressure needed at the receiving point. The available air pressure must also support the required discharge pressure. As a working rule, compare the pump curve with measured air supply during operation, not only the compressor’s advertised rating. Small details matter.

Test the fluid at its real operating temperature when possible. Water-like liquids behave differently from slurries or shear-sensitive fluids. A short trial can reveal unstable cycling, poor priming, or excessive air consumption. Recheck the selection after installation. Field conditions often expose assumptions that looked reasonable on paper.

Evaluate Air Consumption, Efficiency, and Operating Costs

Choosing the right AOD pump starts with air consumption, not just flow rate. Compare required flow, discharge pressure, liquid viscosity, and duty cycle under real operating conditions. CAGI guidance recommends using standardized performance data, because catalog figures may reflect ideal test conditions. A pump rated for 100 L/min can consume far more air when backpressure rises or diaphragms become worn. Measure the actual air pressure at the pump inlet.

Air is expensive. The U.S. Department of Energy’s Improving Compressed Air System Performance reports that compressed-air systems can represent about 10% of industrial electricity use, with higher shares in some facilities. AOD pumps also convert electrical energy into compressed air, then back into mechanical motion. That double conversion demands careful control. Select a pump that reaches the required flow without excessive oversizing. Smaller demand often means lower annual operating costs.

Check the pump’s air consumption curve, not only its maximum capacity. Record operating hours, compressor power, electricity price, and maintenance intervals. ISO 1217 provides recognized methods for compressor performance testing, but pump-site conditions still affect results. Leaks, wet air, restricted silencers, and unstable pressure can distort your calculation. The uncomfortable detail is simple: the cheapest pump to purchase may cost more over one year. Oversizing feels safe, but it can hide poor efficiency. Field measurements are imperfect, yet they are usually better than assumptions.

Verify Installation, Maintenance, and Safety Requirements

Choosing an air-operated double-diaphragm (AOD) pump involves more than matching flow and pressure. Verify the installation before judging pump performance. Mount the unit on a rigid, level support to reduce vibration. Keep the suction line short, straight, and fully supported. Use hoses rated for the fluid, temperature, and pressure. Check inlet and outlet arrows twice. A reversed connection can look like a pump failure. Set the air regulator gradually while watching pressure, flow, and unusual noise. In practice, small alignment errors often create large maintenance problems.

Maintenance should follow actual service conditions, not only calendar dates. Inspect diaphragms, balls, seats, fasteners, and air-valve components for wear. Flush the pump after fluids can settle, harden, or crystallize. Drain trapped pressure before opening any cover. Record operating pressure, cycle rate, leakage, and replacement parts in a simple log. This creates useful evidence when performance changes. Do not overtighten fasteners; uneven torque can distort the chamber. I have seen clean-looking pumps fail because one damaged seat was overlooked. A checklist helps, but it is not perfect.

Safety verification must include people, equipment, and the surrounding area. Isolate and lock out the air supply before service. Release both process and exhaust pressure. Wear eye, hand, and hearing protection when conditions require it. Confirm fluid compatibility with wetted materials and seals. Provide ventilation if the process releases harmful vapors. Bond and ground components when static control is required by the site assessment and applicable rules. Keep exhaust discharge away from workers and ignition sources. Never use a leaking connection as a temporary fix. That shortcut deserves a second thought.
